Setting Up Your Printer on a Network

For Windows XP

Note:
This section is written for small network users only. If you are on a large network and would like to share your printer, consult your network administrator.
This section tells you how to set up your printer so that other computers on the network can use it.
First, you need to setup the printer as a shared printer on the computer to which the printer is connected. Then, you must signify the network path to the printer from each computer to use the printer, and install the printer software on those computers.

Setting up your printer as a shared printer

Follow these steps to share a printer that is connected directly to your computer with others on a network.
Click Start, and then Printers and Faxes.
Right-click your printer icon, and click Sharing in the menu that appears. If the following menu appears, click Network Setup Wizard or If you understand the security risks but want to share printers without running the wizard, click here, and follow the on-screen instruction.


Select Share this printer, then type the name in the Share name box.


Click OK.
Note:
Do not choose any drivers from the Additional Drivers list.

Accessing the printer through a network

To access your printer from another computer on a network, follow these steps.
Note:
Your printer must be set up as a shared resource on the computer to which it is directly connected before you can access it from another computer.
Install the printer driver to the client computer from the software CD-ROM.
Click Start and open Printers and Faxes, right-click your printer's icon, then open the Properties for your printer.
Click the Ports tab, and click Add Port.


The following dialog appears. Select Local Port, then click New Port.


The following dialog appears. In the text box, type the following information:)

\\name of computer that is connected to the printer\name of the shared printer

Then click OK.


Close the Printer Ports dialog box to return to the Ports menu.
On the Ports menu, make sure that the new port is added and the check box is selected. Click OK to close the Properties.

How To Setup a Multiple ISP modem in a Single Network

Someone ask me if is possible to use 2 modem or more in a 1 network. So  I made this tutorial specially for those who have  shop and Globe Wimax. We only need a switch or HUB.



1. Set the LAN IP of the modem   Trick.

Exhibit Modem 1.
on Wimax Modem log in as admin then go to Basic- LAN  modem 1 don't do anything :)



Exhibit Modem 2.
Log in as admin go to LAN change IP addres and Start IP then click Apply.

NOTE: LAN IP will be the DNS server for client PC



2. Set Client PC DNS server.
  • Go to LAN properties
  • Find the TCP/IP click the propeties
  • click use the following DNS server input your DNS ( LAN IP of your MODEM)



Client  PC 1


Client PC 2



*Take NOTE because we change the modem LAN IP address  gui and telnet will also change , how ever we can restore it. If you change Mac then used a restoredef command the modem LAN IP will also restore so you need to setup again the LAN IP.



New Web Gui IP


New Telnet IP


-blogmytuts

One Click Change Mac vbs script auto restore default for 622i

Ok this is a simple vbs script so you can change mac fast and easily and no need to log in as admin in the web gui to restore default. agad connect ang modem mo.


1.Copy the script below on a Notepad
2.Change the MAC you want to use ( live / working mac)
3.Save as BM622i CHANGEMAC.vbs


If you want to change mac all you need is to edit your mac add in BM622i CHANGEMAC.vbs




Set cloner = CreateObject("WScript.Shell")
cloner.run"cmd"
WScript.Sleep 500

cloner.SendKeys"telnet 192.168.254.1"
cloner.SendKeys("{Enter}")
WScript.Sleep 500

cloner.SendKeys"wimax"
cloner.SendKeys("{Enter}")
WScript.Sleep 500

cloner.SendKeys"wimax820"
cloner.SendKeys("{Enter}")
WScript.Sleep 500

cloner.SendKeys"diag set macaddr 10:C6:1F:CF:58:A7"
cloner.SendKeys("{Enter}")
WScript.Sleep 500

cloner.SendKeys"diag restore default"
cloner.SendKeys("{Enter}")
WScript.Sleep 500

cloner.SendKeys("{Enter}")
WScript.Sleep 30000

cloner.SendKeys"exit"
cloner.SendKeys("{Enter}")
WScript.Sleep 45000

Simple and easy


Connected agad log in as user only to check


tnx to those who reply me with the restore default command

NOTE: While the script or cmd is running DONOT click touch your keyboard or mouse because the command may lost is focus and not run properly.



-blogmytuts

How to Change BM622i Wimax Mac via SPI Flasher

This tutorial for Wimax BM622i modem you need a know how in hex and electronics, you need also a hot air tools. Change MAC using LPT Flasher and dump files and SPI Program, There are humor that Bm622i is similar to xbox 360.

Always Check this Post for Updates..

STEP BY STEP HOW TO USED SPI PROGRAMUpdate CLICK HERE

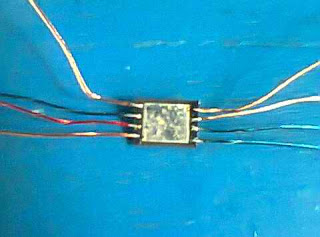

To protect the Spansion













Create a Homemade Flasher

Here is the SPI circuit You can buy parts in electronics shop like ALEXAN you won't spend 200 pesos.
some trouble with try 2 use 74hc244 na ic,,groun pin#1&10 nad remove pullup resistor. To learn about LPT Flasher  asked Google








Connect your  Flasher on LPT (Parallel Port)

New PC  motherboard don't have parallel port
I find CD RKING  PCI Parallel Card for 280 pesos.





Run SPI program   Calibrate then Select Device family Spansion

NOTE: Win7 Change compatibility to XP you may have BLUE SCREEN





Click ID to test in your Flasher read your IC

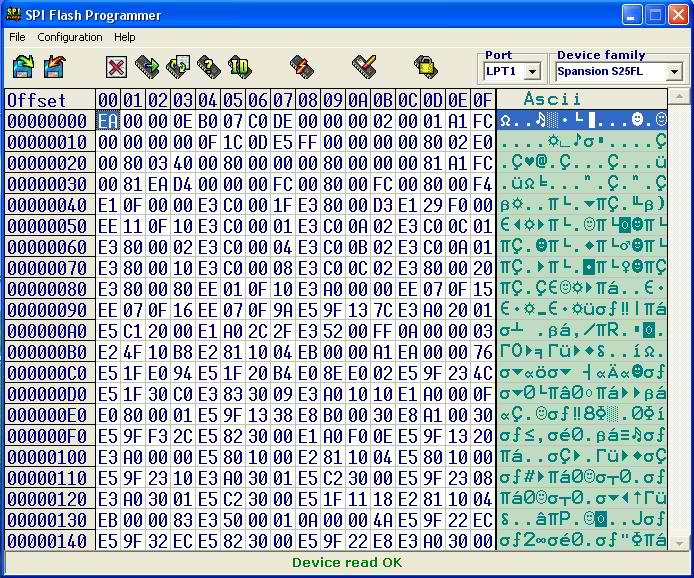

 Read your Device You can save your dump file here



 You need to find  your MAC WAN in offset here you must know how to use HEX  and chance value
The finishd PCB in action, just remember to erase the chip first before re-programming, it works best that way...

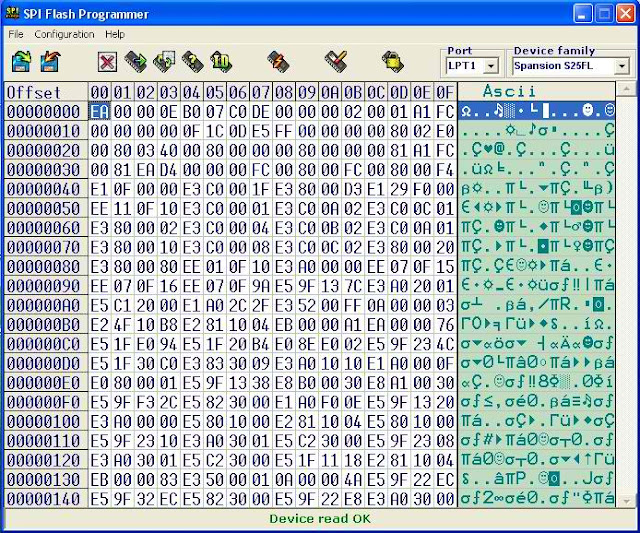

Find your MAC and EDIT







  Supported chips (and possibly others) :
  • AMIC:
  • A25L05PU/PT (64kB)
  • A25L10PU/PT (128kB)
  • A25L20PU/PT (256kB)
  • A25L40PU/PT (512kB)
  • A25L80PU/PT (1MB)
  • A25L16PU/PT (2MB)
  • A25L32PU/PT (4MB)
  • A25L64PU/PT (8MB)
  • A25L512 (64kB)
  • A25L010 (128kB)
  • A25L020 (256kB)
  • A25L040 (512kB)
  • A25L080 (1MB)
  • Atmel:
  • AT26DF041 (512kB)
  • AT26DF081A (1MB)
  • AT26DF161A (2MB)
  • AT26DF321 (4MB)
  • EON:
  • EN25P16 (2MB)
  • EN25P32 (4MB)
  • EN25P64 (8MB)
  • EN25P128 (16MB)
  • EN25F16 (2MB)
  • EN25F32 (4MB)
  • EN25F64 (8MB)
  • EN25F128 (16MB)
  • Macronix:
  • MX25L1005 (128kB)
  • MX25L2005 (256kB)
  • MX25L4005 (512kB)
  • MX25L8005 (1MB)
  • MX25L1605 (2MB)
  • MX25L3205 (4MB)
  • MX25L6405 (8MB)
  • Spansion:
  • S25FL004A (512kB)
  • S25FL008A (1MB)
  • S25FL016A (2MB)
  • S25FL032A (4MB)
  • S25FL064A (8MB)
  • S25FL128P (16MB)
  • SST:
  • SST25VF010 (128kB)
  • SST25VF020 (256kB)
  • SST25VF040 (512kB)
  • SST25VF080 (1MB)
  • SST25VF016 (2MB)
  • SST25VF032 (4MB)
  • SST25VF064 (8MB)
  • SST25VF128 (16MB)
  • SST26VF016 (2MB)
  • SST26VF032 (4MB)
  • SST26VF064 (8MB)
  • ST Microelectronic:
  • M25P10 (128kB)
  • M25P20 (256kB)
  • M25P40 (512kB)
  • M25P80 (1MB)
  • M25P16 (2MB)
  • M25P32 (4MB)
  • M25P64 (8MB)
  • M25P128 (16MB)
  • Winbond:
  • W25X10 (128kB)
  • W25X20 (256kB)
  • W25X40 (512kB)
  • W25X80 (1MB)
  • W25X16 (2MB)
  • W25X32 (4MB)
  • W25X64 (8MB)

 UPDATE!! Flasher Version

This one no need to remove the Spansion chip


A Ultra Fast USB flasher!!

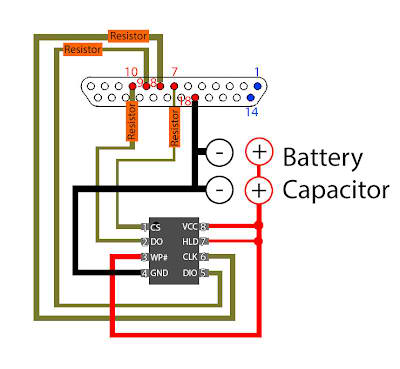

LPT Simple version
8x or more (thin) wires. The chip had 8 pins after all.
- 8x pins (taken from unused LPT cable)
- 1x 3V CR2302 battery
- 1x 1000uF capacitor
- 8x 100ohms resistor (Use appropriate value - depends on your LPT port output impedance and wiring parameters)





Nadar Gator Version
 added a voltage regulator to power it directly from USB port, a switch and some LED indicators .. the extra 3 pin white-connector you see is  to get +5VDC & +3.3VDC directly out (optional)










 Darwin bagsik  version!!



UPDATE KASAMIKOS Flasher








Professional Quality USB SPI Programmer with SOIC8 Adapter!




Read more Baklas kabit : http://www.symbianize.com/showthread.php?t=857495

Updated USB SPI Programer Software:

Download USBSPI Skip ads

cadsoft.eagle.professional.v6.1.0

#If you want to buy SPI Flasher Ready to USED..

Check kasamiko USB type thread http://www.symbianize.com/showthread.php?t=859776

Check SPIflash LPT type thread http://www.symbianize.com/showthread.php?t=877589

FREE DUMP FILE:
 622 and 626

IF you have any dump file there like 2010  share it here lets help each other.
working copy ng bm622 wan data
Download Now

http://www.mediafire.com/?r2qu64d3kkm4h93

Download bm622i 2011
click here

Download Bm622i 2010
click here
